BPX3/14 PCI Express Backplane

Key Features

  • Wide Range of SBC Options
  • 2-x4 PCIe I/O Card Slots
  • 2-64-bit/133MHz PCI-X Slots
  • 14-64-bit/100MHz PCI-X Slots

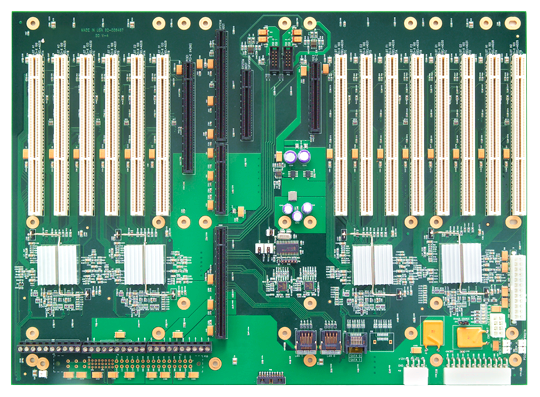

The BPX3/14 PCI Express Backplane

The BPX3/14 PCI Express backplane provides electrical connections for a single or dual-processor single board computer, one IOB33 PCIe link expansion module, two PCI Express and fourteen PCI-X/PCI plug-in I/O cards.  The backplane design places the SBC slot near the center of the backplane to enable more efficient air flow in a rackmount enclosure.

Some of the single board computer’s PCI Express links drive the PCIe card slots directly while other links enable the dual-channel PCIe-to-PCI-X bridge chips to interface the PCI-X/PCI slots into the system.  The sixteen option card slots support standard PCIe, PCI-X and PCI plug-in I/O cards typically used in communication platforms.

Key features of the BPX3/14 PCI Express backplane include:

  • Supports one PICMG 1.3 combo or server-class SBC
  • SBC slot located near the center of the backplane improves chassis air flow
  • Supports two PCI Express and fourteen PCI-X/PCI cards
    • 1 –  x4 PCI Express electrical / x16 mech. connector
    • 1 –  x1/x4 PCI Express electrical# /  x8 mech. connector From IOB33 module on the SBC — link width is SBC dependent
    • 2 – 64-bit/133MHz PCI-X
    • 12 – 64-bit/100MHz PCI-X
  • Four, dual-channel PCIe-to-PCI-X bridge chips
  • Long-life backplane with 7+ years of availability enhances system design stability
The BPX3/14 PCI Express backplane is designed, manufactured and supported in the USA.  This 20-slot PCI Express backplane is supported by a 5-year warranty.

Tech Specs

Model Number


Form Factor

20-slot form factor supports one PICMG 1.3 SBC, PCI Express and PCI-X/PCI option cards


Board dimensions: 16.4” x 11.9”

The nominal backplane thickness is 0.080”; however, the backplane mounting holes are recessed 0.018” on the bottom to provide an effective PCB thickness of 0.062” for use in the chassis design process.


PCI Express Slots
One, x4 PCIe slot (x16 mechanical) driven directly from SBC
One, x4/x1 PCIe slot (x8 mechanical) from SBC via an IOB33 module

Twelve, PCI-X/PCI slots, 64-bit/100MHz
Two, PCI-X/PCI slots, 64-bit/133MHz

See datasheet or mechanical layout diagram for detailed slot routing information.


16.4″ x 11.9″ (20-slot)

Card Slots

1 –  x4 PCI Express 2.0/1.1 electrical / x16 mech. connector
1 –  x4/x1 PCI Express 2.0/1.1 electrical# / x8 mech. connector
2 –  64-bit/133MHz PCI-X
12 – 64-bit/100MHz PCI-X

#From IOB3x on SBC / link width SBC dependent

Suggested SHB/SBC’s

Dual-processor SBC’s




BXT7059 Single Board Computer

BXT7059 Details


JXT6966 Singleboard Computer

JXT6966 Single Board Computer

JXT6966 Details


MCXT Single Board Computer

MCXT Single Board Computer

MCXT Details


SLT Single Board Computer

SLT Single Board Computer

SLT Details

Single-processor SBC’s




TSB7053 Single Board Computer

TSB7053 Details


BXTS7059 Singleboard Computer

BXTS7059 Single Board Computer

BXTS7059 Details


JXTS6966 Singleboard Computer

JXTS6966 Single Board Computer

JXTS6966 Details


MCXI Single Board Computer

MCXI Single Board Computer

MCXI Details


SLI Single Board Computer

SLI Single Board Computer

SLI Details

SHB Configuration

Single or dual-processor PICMG 1.3 Combo, Server or Graphics Class SBCs

Ethernet Interfaces

The BPX3/14 backplane supports the optional Ethernet routing feature of the SHB Express (PICMG 1.3) specification. Two 10/100/1000Base-T Ethernet RJ-45 connectors (P13 and P14) are available for use on the backplane.

Agency Approvals and Compliance

Designed for UL60950 and CAN/CSA C22.2 No.60950-00, EN55022:1998 Class B, EN61000-4-2:1995, EN61000-4-3:1997, EN61000-4-4:1995, EN61000-4-5:1995, EN61000-4-6:1996, EN61000-4-11:1994

Power Connectors

The standard BPX3/14 backplane is available with vertical or low-profile right angle power connector suitable for use with either an ATX or EPS power supply.

Power Indicators

+5V, -5V, +5V AUX, +12V, -12V and +3.3V power connection and status.


Operating Temp:  0°C to 60°C
Storage Temp:  -20°C to 70°C
Humidity:  5% to 90%, non-condensing

The BPX3/14 is lead free, RoHS compliant backplane
